Precision CNC Laser Cutting & Welding for Advanced Manufacturing

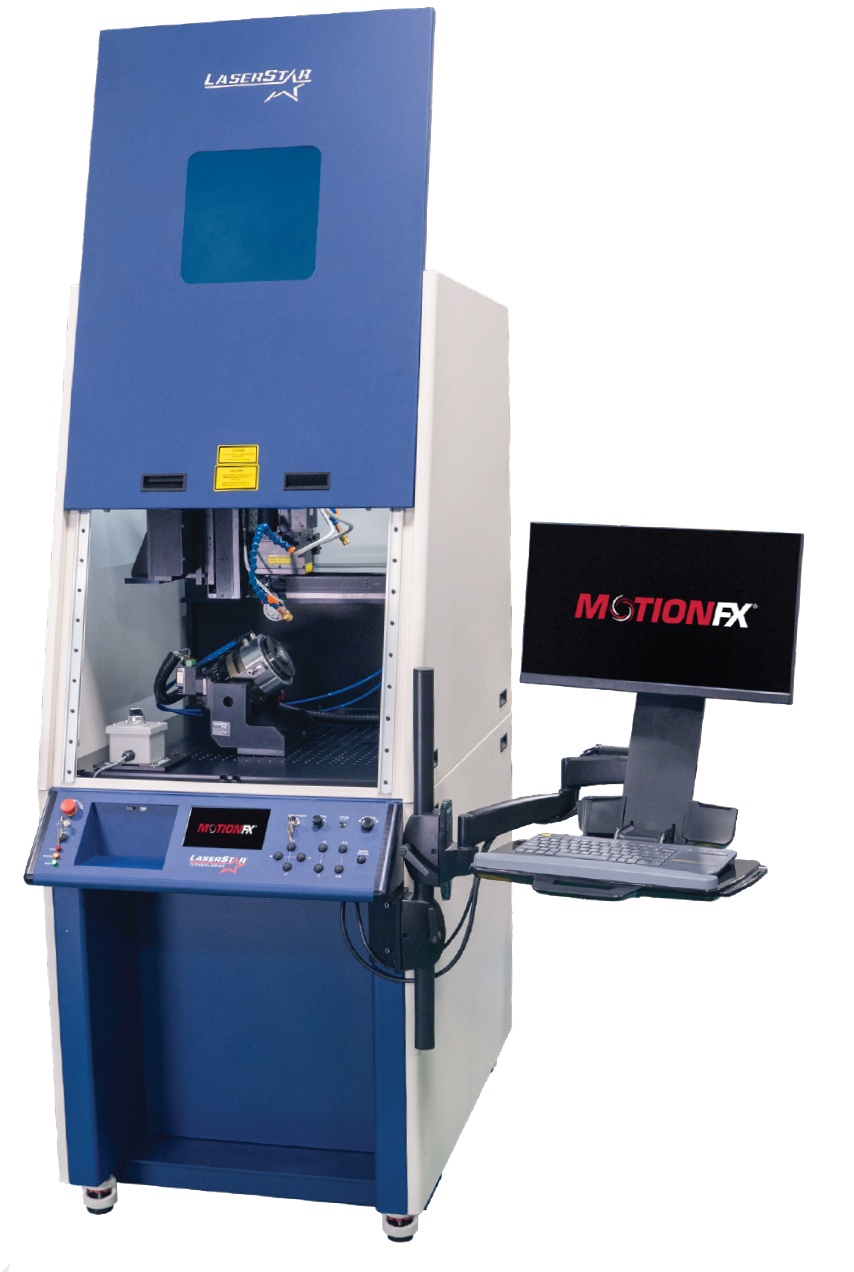

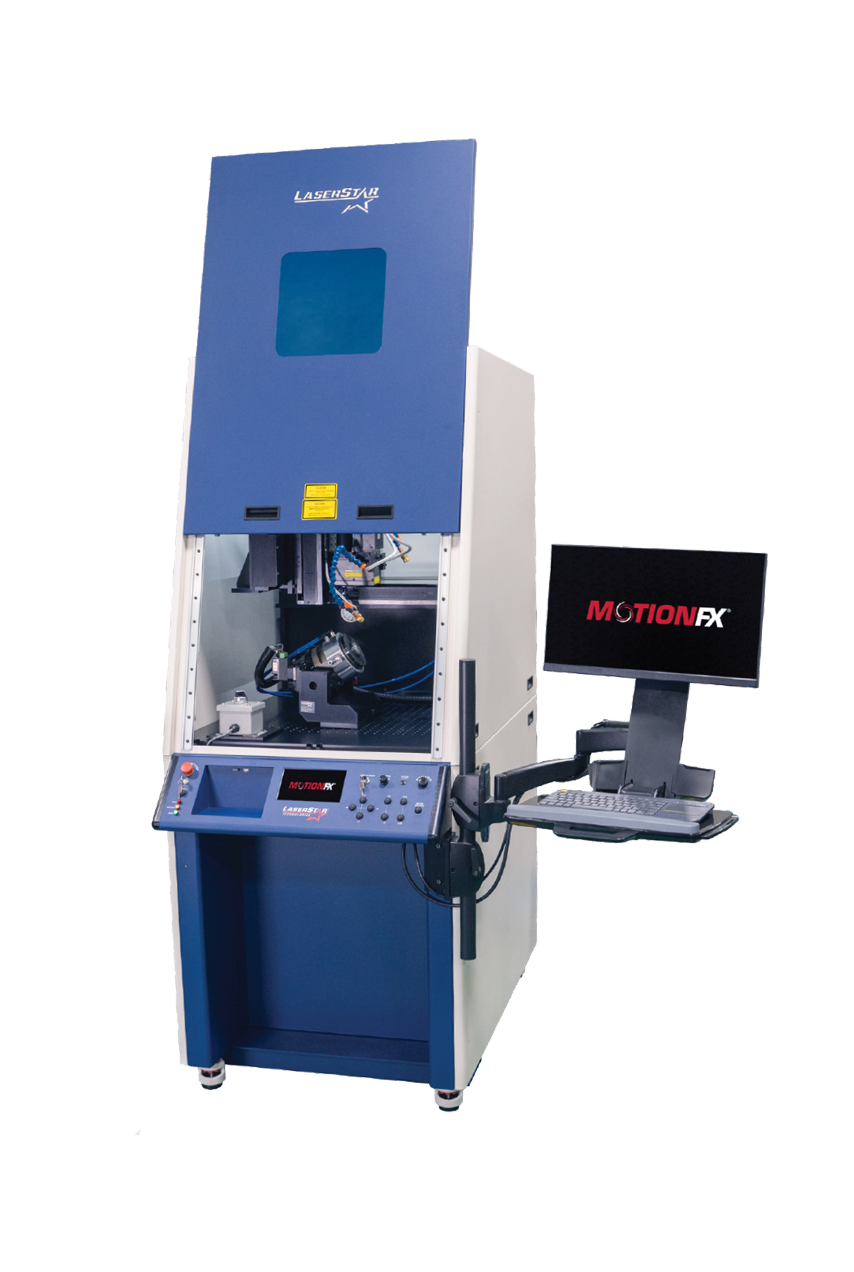

The LaserStar FiberStar® 3905 Series Tower CNC Workstation is a highly versatile, precision laser machining system designed for demanding cutting and welding applications. Combining powerful fibre laser technology with programmable CNC motion control, the 3905 Series provides manufacturers with the accuracy, repeatability and flexibility required for complex components and high-quality production.
Designed as a configurable production platform, the FiberStar 3905 can be equipped for either laser cutting or laser welding, enabling businesses to specify a system around their particular manufacturing requirements. Applications extend across precision engineering, medical device manufacture, aerospace, electronics, automotive, jewellery, prototyping and specialist component production.
Precision CNC Control
At the heart of the 3905 Series is a programmable 4-axis-capable CNC motion system, providing X, Y and Z movement with the option of an additional rotary axis. This allows complex profiles, components and repeatable production processes to be completed with exceptional control.
The system provides 300mm x 300mm x 150mm X/Y/Z travel, with repeat accuracy of approximately ±0.01mm per axis and processing speeds of up to 200mm per second per axis, dependent on the material and laser process.
An integrated computer and LaserStar machining software provide an intuitive environment for programming and controlling production, while DXF-to-GCODE conversion capabilities help streamline the transition from digital design files to finished components.
Cutting or Welding – One Flexible
One of the major advantages of the FiberStar 3905 Series is its flexibility. The workstation can be configured with either a laser cutting head or laser welding head, allowing GVUK Design to specify the system according to the customer's application and production objectives.
For laser cutting applications, the system delivers clean, dimensionally accurate cuts, fine profiles and intricate patterns across a wide variety of materials. For welding applications, precise CNC-controlled movement enables consistent weld positioning, making the workstation particularly suited to repeat production and complex components where accuracy is critical.
FiberStar® Technology
The air-cooled FiberStar laser platform is engineered to provide excellent beam quality together with dependable long-term performance. The sealed laser source is designed to minimise maintenance requirements while providing the reliability required in industrial production environments. The 3905 Series has historically been offered with 150W, 300W and 450W FiberStar laser configurations, allowing the system to be matched to different applications and materials.
Built for Advanced Manufacturing
The FiberStar 3905 Series can be used across a broad range of applications, including medical devices and instruments, aerospace and electronic components, automotive and micro-components, tool and die manufacturing, prototyping, general parts manufacturing and jewellery production.
Its ability to process materials including precious metals, industrial alloys, ceramics and selected plastics makes it an extremely adaptable platform for businesses looking to bring precision laser manufacturing in-house.
Key Features:
Programmable CNC Control
Precision X, Y and Z positioning with optional rotary-axis capability for complex machining applications.
Laser Cutting or Welding
Configure the workstation around your production requirements with dedicated cutting or welding head options.
High-Precision Motion
Designed for accurate, repeatable component manufacture with tight dimensional tolerances.
Integrated Digital Workflow
An integrated computer, LaserStar machining software and DXF-GCODE conversion support efficient programming and production.
Air-Cooled Fiber Laser Technology
Reliable fibre laser performance without the complexity associated with traditional water-cooled laser systems.
Flexible Manufacturing Platform
Suitable for prototypes, specialist components, small batches and repeat production across multiple manufacturing sectors.
Optional Rotary Axis
Expand machining possibilities for cylindrical components and more complex geometries.
The FiberStar 3905 Series is suited to precision applications including:
Laser cutting and profiling, automated precision welding, medical instruments and devices, aerospace components, automotive parts, electronics, micro-components, tool and die applications, prototyping, general precision engineering and jewellery manufacturing.
GVUK Design works with customers to identify the most appropriate laser technology for their individual manufacturing requirements. From initial application assessment and system specification through to installation, training and ongoing technical support, our team can help you integrate the FiberStar® 3905 Series Tower CNC Workstation into your production workflow.
Whether your requirement is precision laser cutting, automated laser welding or a specialised CNC laser application, the FiberStar 3905 Series provides a powerful and adaptable platform designed around accuracy, productivity and repeatability.
Talk to GVUK Design about your application today and discover how the LaserStar FiberStar® 3905 Series can transform your laser cutting and welding capabilities.
